Middle Size Screening Machine Xray Baggage Luggage Scanner JY-6550 for Security Inspection
General Specifications
| Model Number | JY- 6550 |
| Passageway Size | 650(W)*500(H)mm |
| Beam direction | light from bottom |
| Penetration | 43mm Steel plate |
| Belt Max Load | 200kg |
| Belt speed | 0.22m/s (adjustable) |
| Dose per inspection | <2Gy/h |
| Resolving power | 0.7871mm diameter metal wire |
| X-Ray leakage | <0.1µGy/h |
| Ray beam spread angle | 80 degree |
| Tube Voltage | 100-160Kv (adjustable) |
| Tube power | 0.4-1.2mA (adjustable) |
| Cooling/work Cycle | Sealed Oil Cooling /100% |
| System voltage | 220V AC(±10%)50±3HZ |

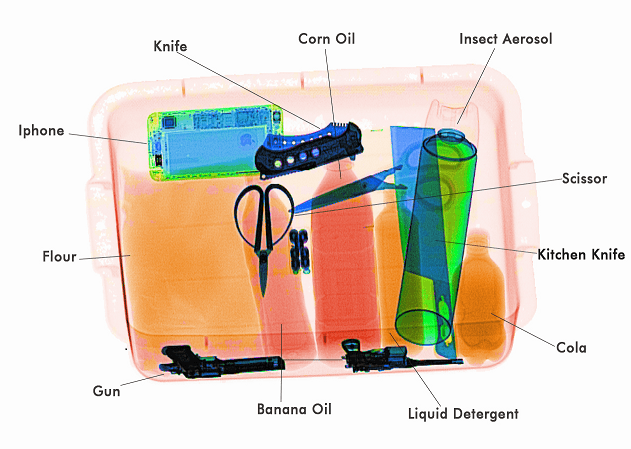

| Multi-energy/Distinguish objects | organic objects in orange,inorganic objects in blue,mixture in green |
| Display | HD 19'' LCD display |
| High-energy/low energe | Switch from high energy to low energy |
| Image restoration | Image display restore the origional status |
Working Environment :
Operation Temeperature / Humidity: 0℃-45℃ / 20%-95% (non condensation)
Storage Temeperature / Humidity: -20℃-60℃ / 20%-95% (non condensation)
Operation Power : 220VAC ( ±10%) 50±3HZ
Power Loss : 0.8KW (max)
Noise Level : ＜52dB
Product highlights:
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
Application:
JY-6550 is widely uesd in Airport, Hotel, Mail Rooms, Railway Station, Metro, Police Bureau, Court, Embassy, Prison, Gymnasium, Exhibition Center, Commercial buildings, Military Bases etc for security check to build us a safer world.
|
|
Middle Size Screening Machine Xray Baggage Luggage Scanner JY-6550 for Security Inspection Images
|
